This example was shot by Sherm Bloomer (OSU), Chief Scientist, Dawn
Wright (OSU), and Dave Tappin (BGS) during BOOMERANG Expedition
Leg 8 aboard the R/V Melville in May/Jun 1996. Seth Mogk (SIO) was
the Geophysical Engineer.
A single SSI 80 cubic inch watergun was used for the source. Only one
channel of a two channel "high speed" streamer is used in the plots
below. The data were recorded with the HIG Sun A/D at 1kHz (1 mil).
No recording filters were used. The shot interval was 10 seconds
while the ship progressed at 6 knots.

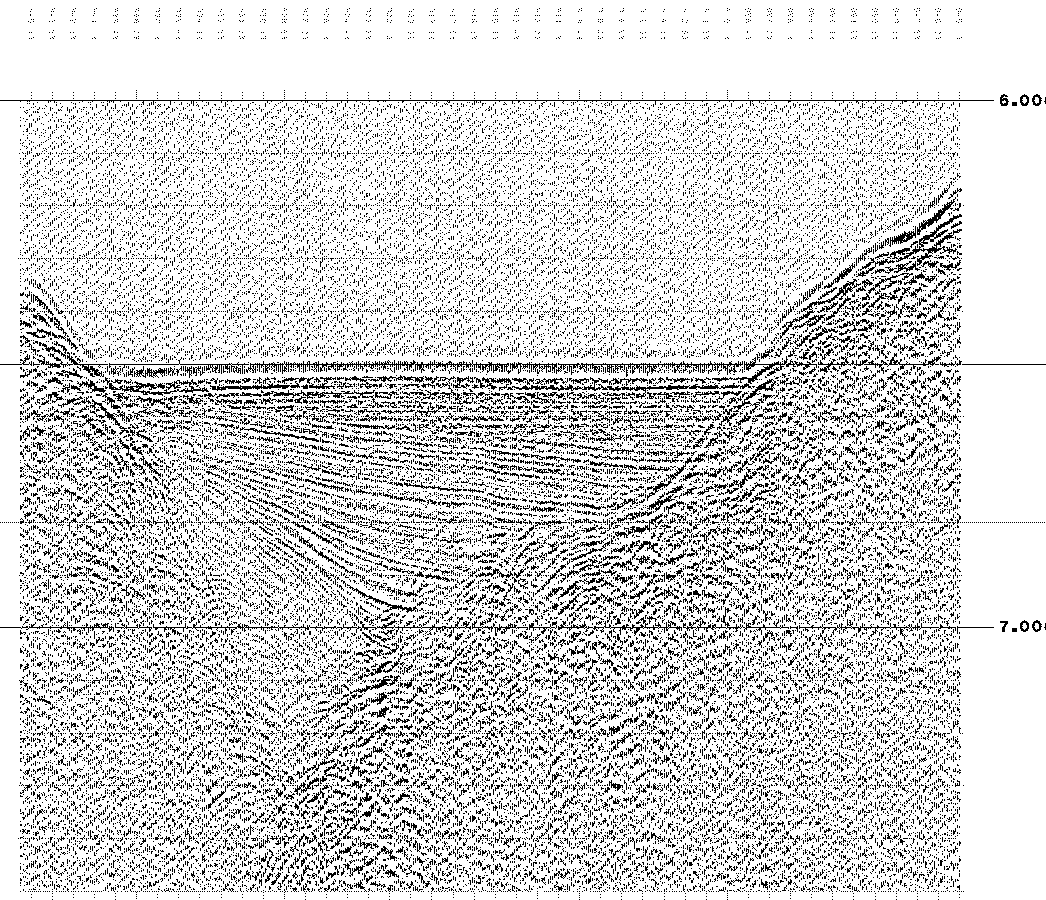

The plot was produced by the following SIOSEIS script:
sioseis << eof
procs diskin debias prout despike filter gains plot end
set 6 7.5 fday 150 lday 150 fgmt 0845 lgmt 0945 ftr 1 ltr 1
ipath /archive/mcs/SGG/1996/boomerang08/line10 end
fac 5 end
type 1 alpha 2 end
fno 1 lno 99999 pass 30 250 ftype 0 dbdrop 48 end
fno 0 lno 99999 noinc 20 ftr 0 ltr 99999 end
srpath sunfil wiggle 0
trpin 50 def .025 clip .025 ann gmtinc anninc 5
nibs 2848 vscale 5 stime 6 nsecs 1.5 end
