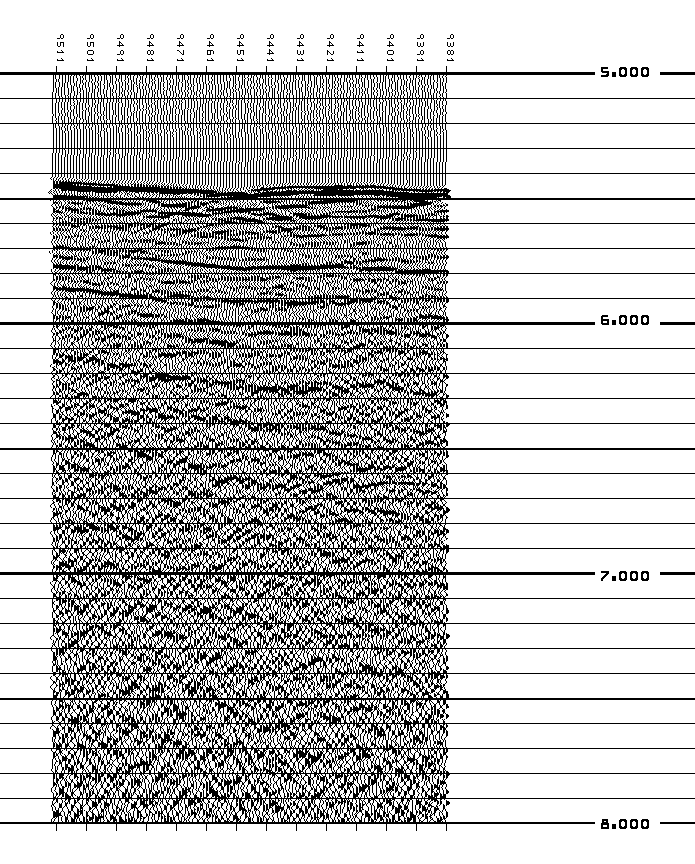

There are four plots associated with this decon example:
1) a plot of the stacked data without decon.
2) A plot of the autocorrelations of the stacked data, showing the
periods to be removed.
3) A plot of the stacked data after decon.

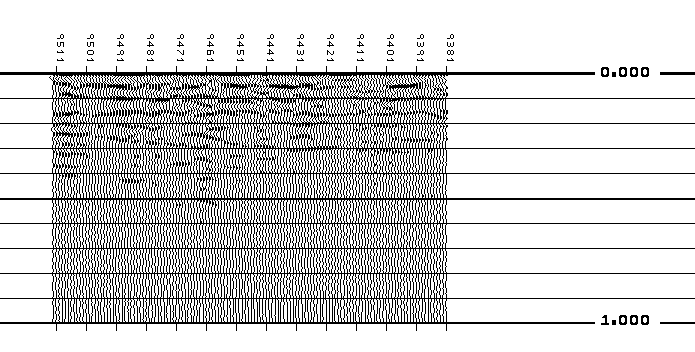

4) A plot of the autocorrelations after decon showing that the
periodic data has been removed.
sioseis << eof
procs diskin filter agc plot end
diskin
set 5 8 ipath data.mit end
end
filter
ftype 2 pass 5 end
end
agc
winlen .5 end
end
plot
nibs 75 nsecs 3 ann rpno trpin 20 def .04
srpath sunfil
end
end
end
eof
xv sunfil
sioseis << eof
procs diskin acorr plot end
diskin
set 5 8 ipath data.mit end
end
acorr
sets 5.3 6.3 olens 1 end
end
plot
nibs 75 nsecs 1 ann rpno trpin 20 def .04
srpath sunfil
end
end
end
xv sunfil
sioseis << eof
procs diskin decon filter agc plot end
diskin
set 5 8 ipath data.mit end
end
decon
prewhi .01 sedts 5.3 6.3 fillen .4 pdist .05 end
end
filter
ftype 2 pass 5 end
end
agc
winlen .5 end
end
plot
nibs 75 nsecs 3 ann rpno trpin 20 def .04
srpath sunfil
end
end
end
xv sunfil
sioseis << eof
procs diskin decon acorr plot end
diskin
set 5 8 ipath data.mit end
end
decon
prewhi .01 sedts 5.3 6.3 fillen .4 pdist .05 end
end
acorr
sets 5.3 6.3 olens 1 end
end
plot
nibs 75 nsecs 1 ann rpno trpin 20 def .04
srpath sunfil
end
end
end
xv sunfil
