I wanted to examine some data Seth Mogk collected using a GI gun
collected with Alan Nance's gun controller.

lsd h2o.seis.data 1 10
      SHOT   TR       RP    TR ID  RANGE DELAY NSAMPS    SI   YR DAY HR MIN SEC
     14505     1       0     0  1      0  5000   4000  1000   97 228 19  54  49
     14505     2       0     0  1      0  5000   4000  1000   97 228 19  54  49
     14506     1       0     0  1      0  5000   4000  1000   97 228 19  54  59
     14506     2       0     0  1      0  5000   4000  1000   97 228 19  54  59
     14507     1       0     0  1      0  5000   4000  1000   97 228 19  55   9
     14507     2       0     0  1      0  5000   4000  1000   97 228 19  55   9
     14508     1       0     0  1      0  5000   4000  1000   97 228 19  55  19
     14508     2       0     0  1      0  5000   4000  1000   97 228 19  55  19
     14509     1       0     0  1      0  5000   4000  1000   97 228 19  55  29
     14509     2       0     0  1      0  5000   4000  1000   97 228 19  55  29

Knowing nothing about the data, just plot a few traces with any plot
parameters.

script #1 - Try #1 plot of try 1

script #1b - Try #2 plot of try 2

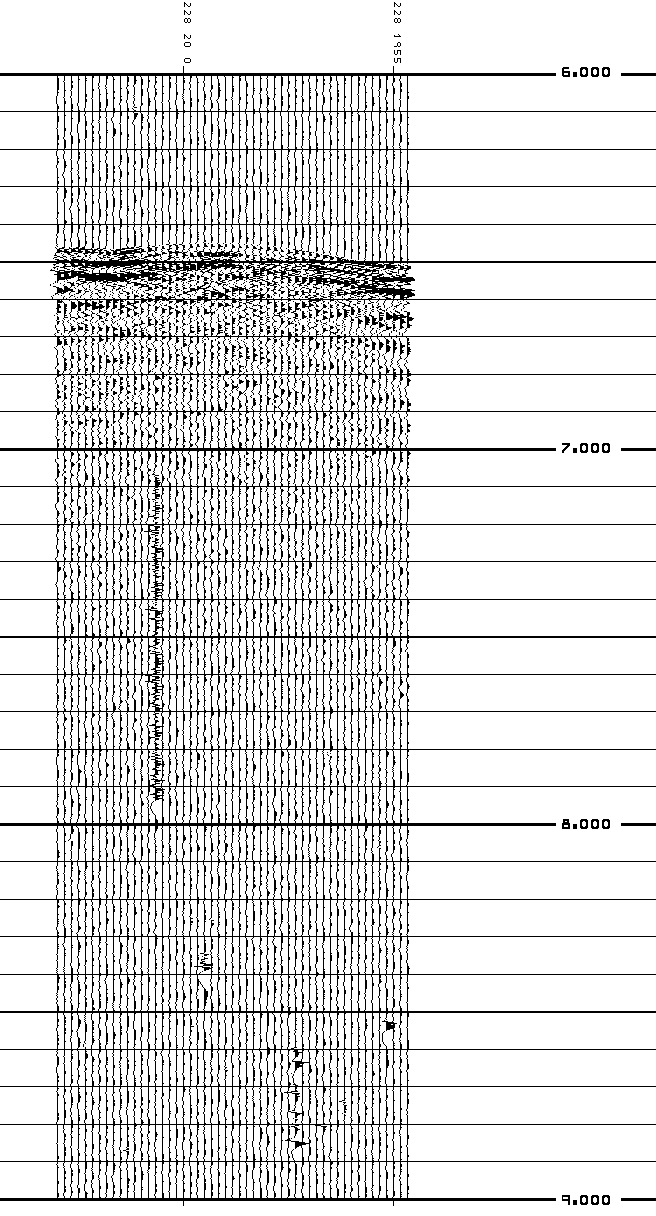

script #1c - Try #3 plot of try 3

script #1d - Try #3 trace 2 plot of trace 2
