gila-scripts

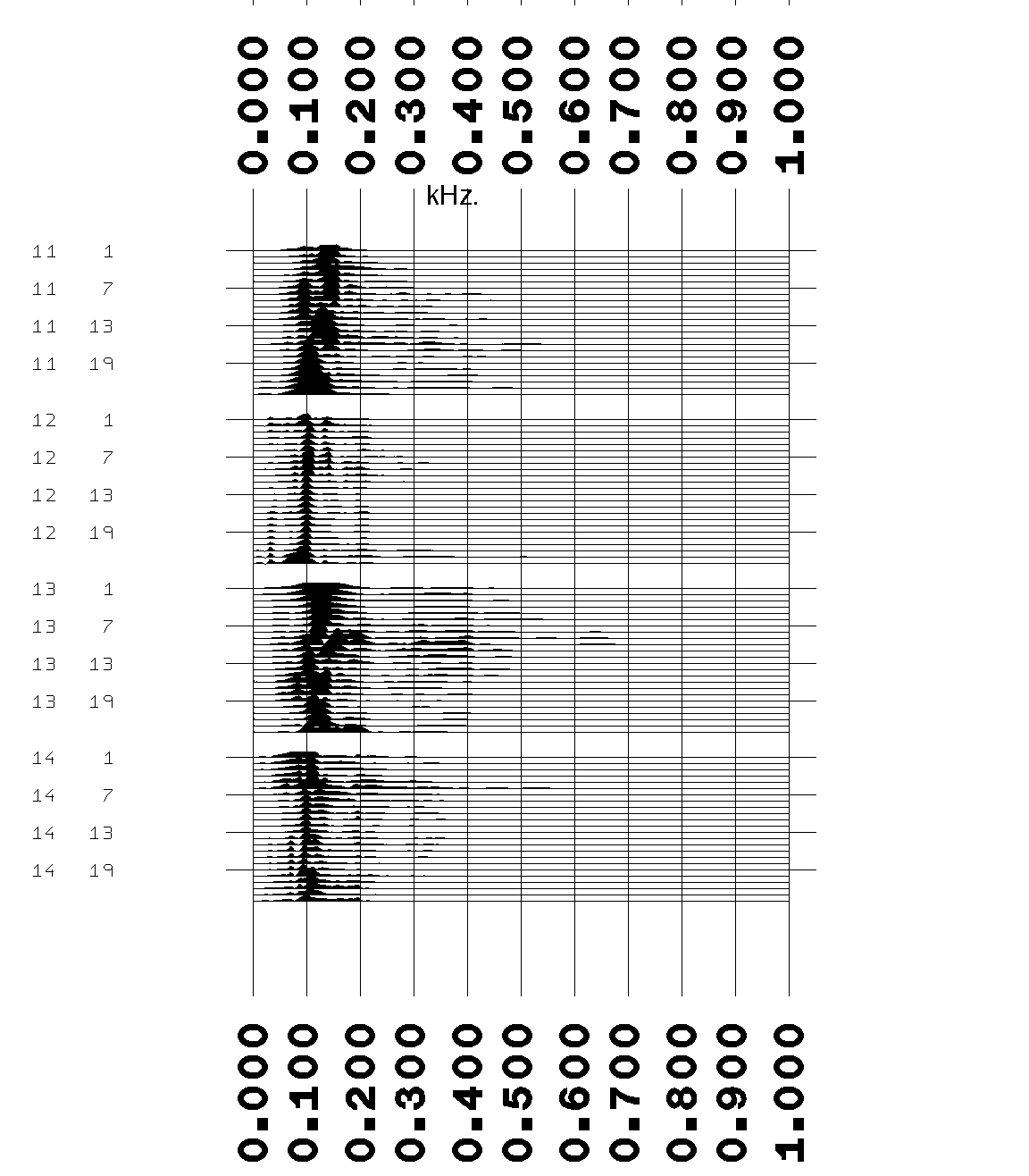

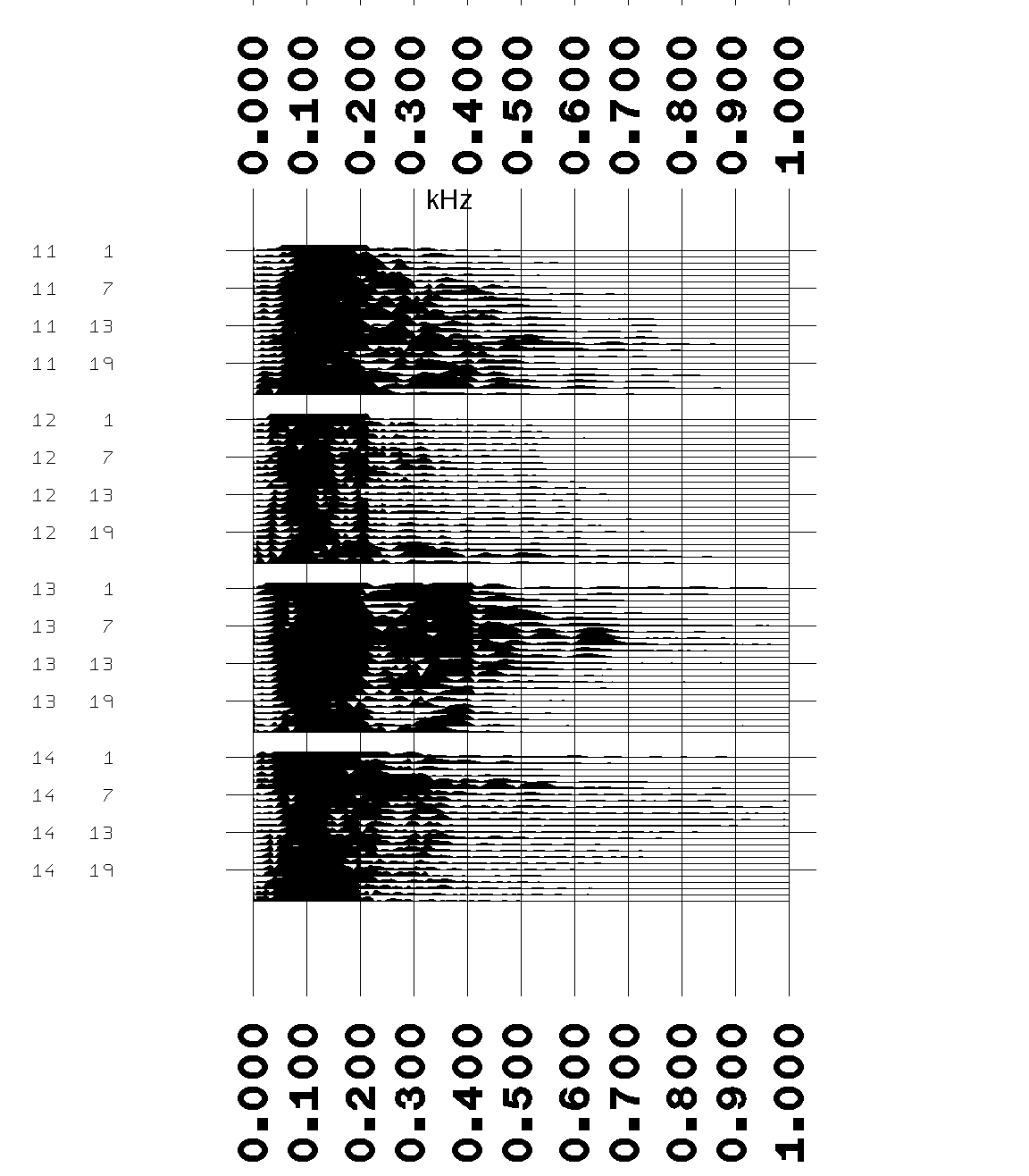

shots11-14fft-2.png - fft with plot overdriven and clipped.

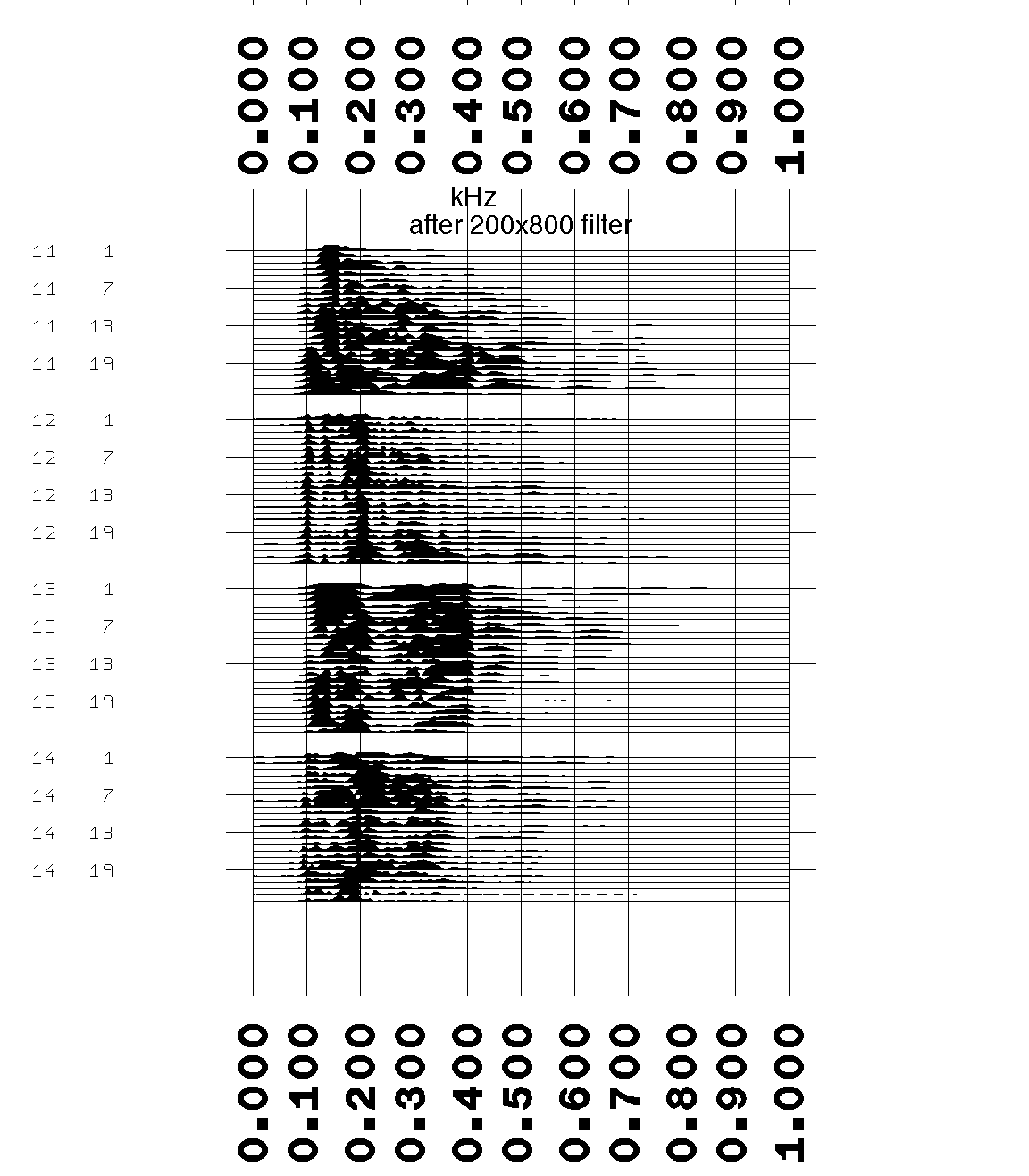

shots11-14fft-3.png - fft after 200x800 filter.

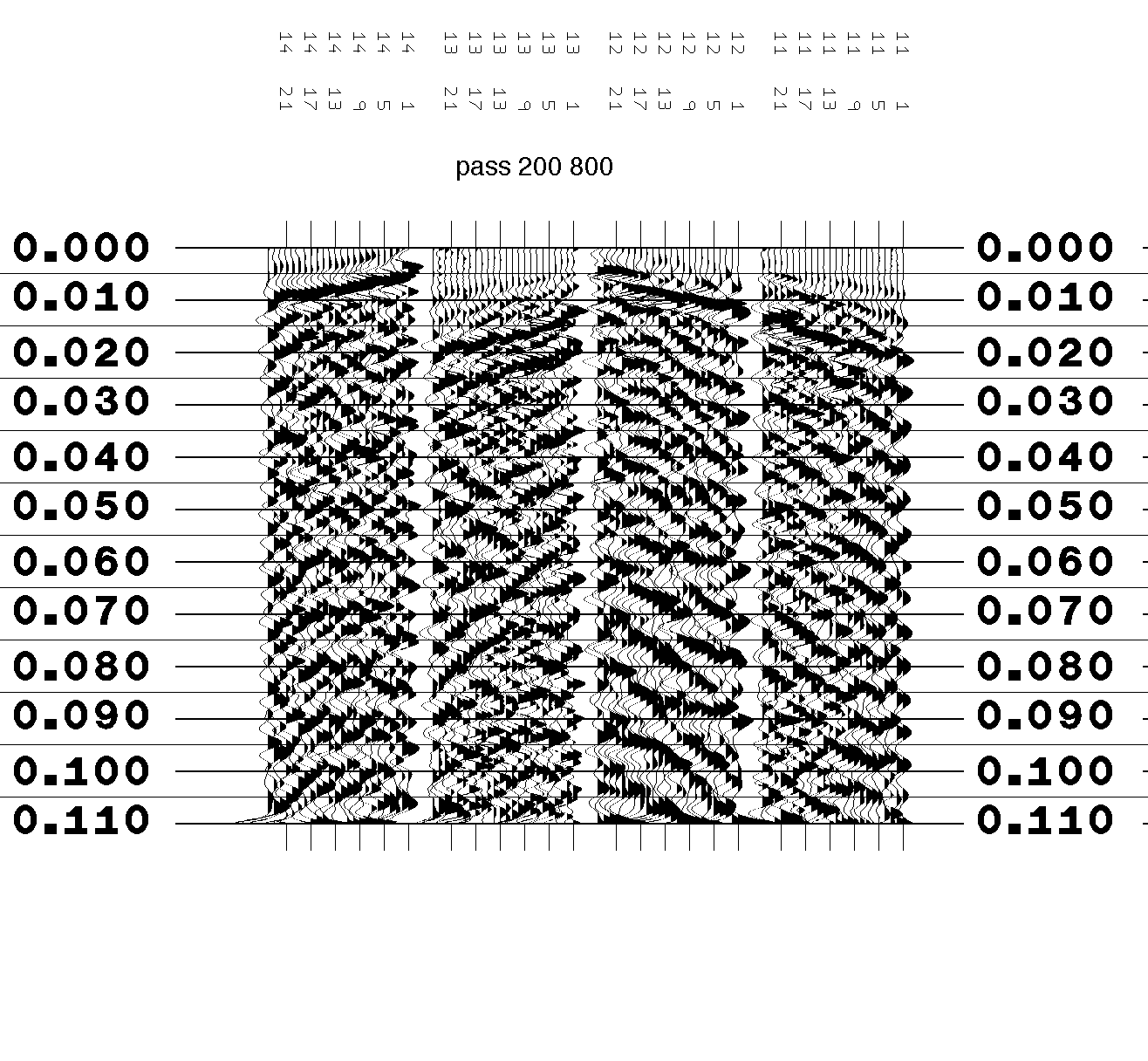

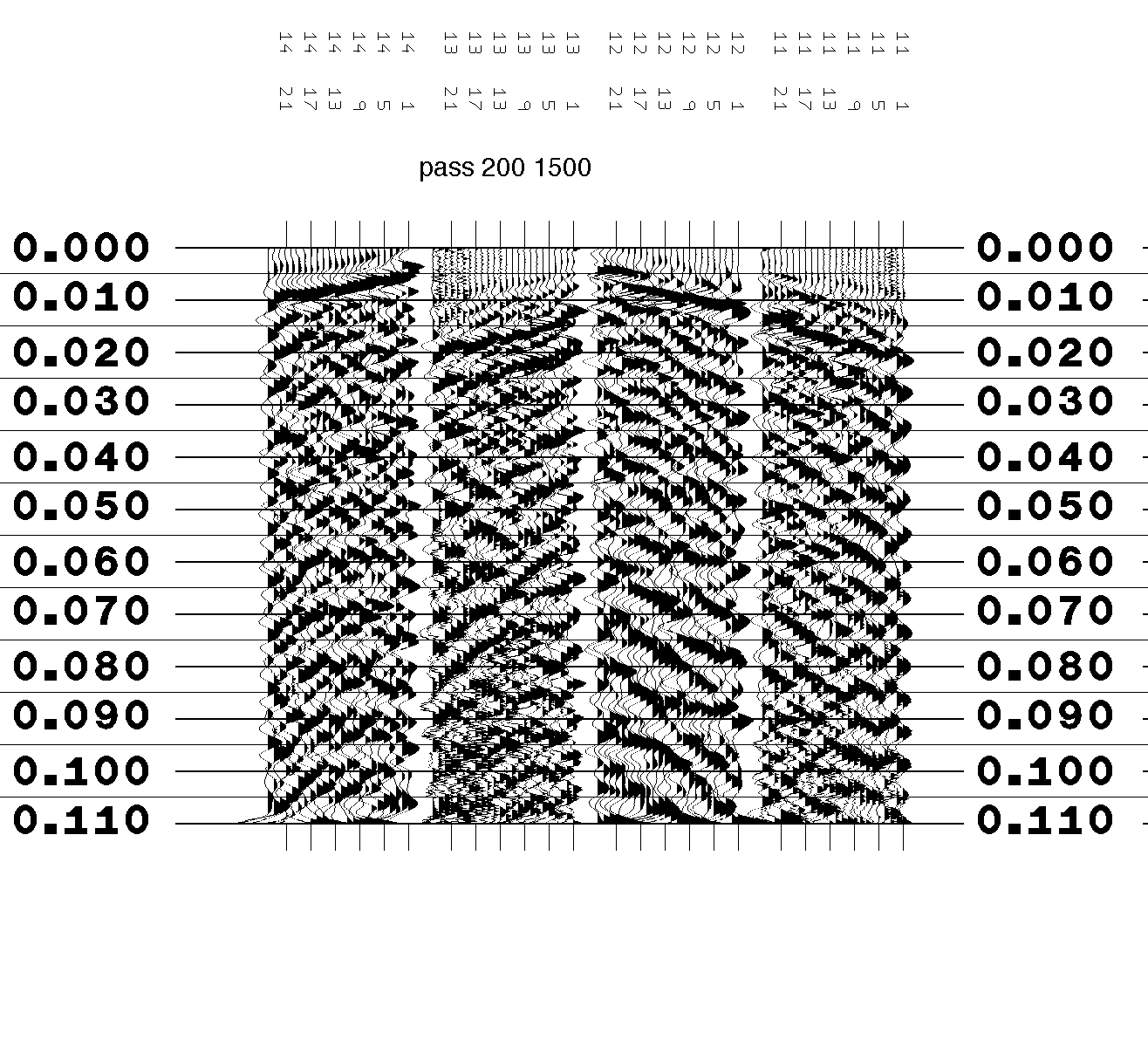

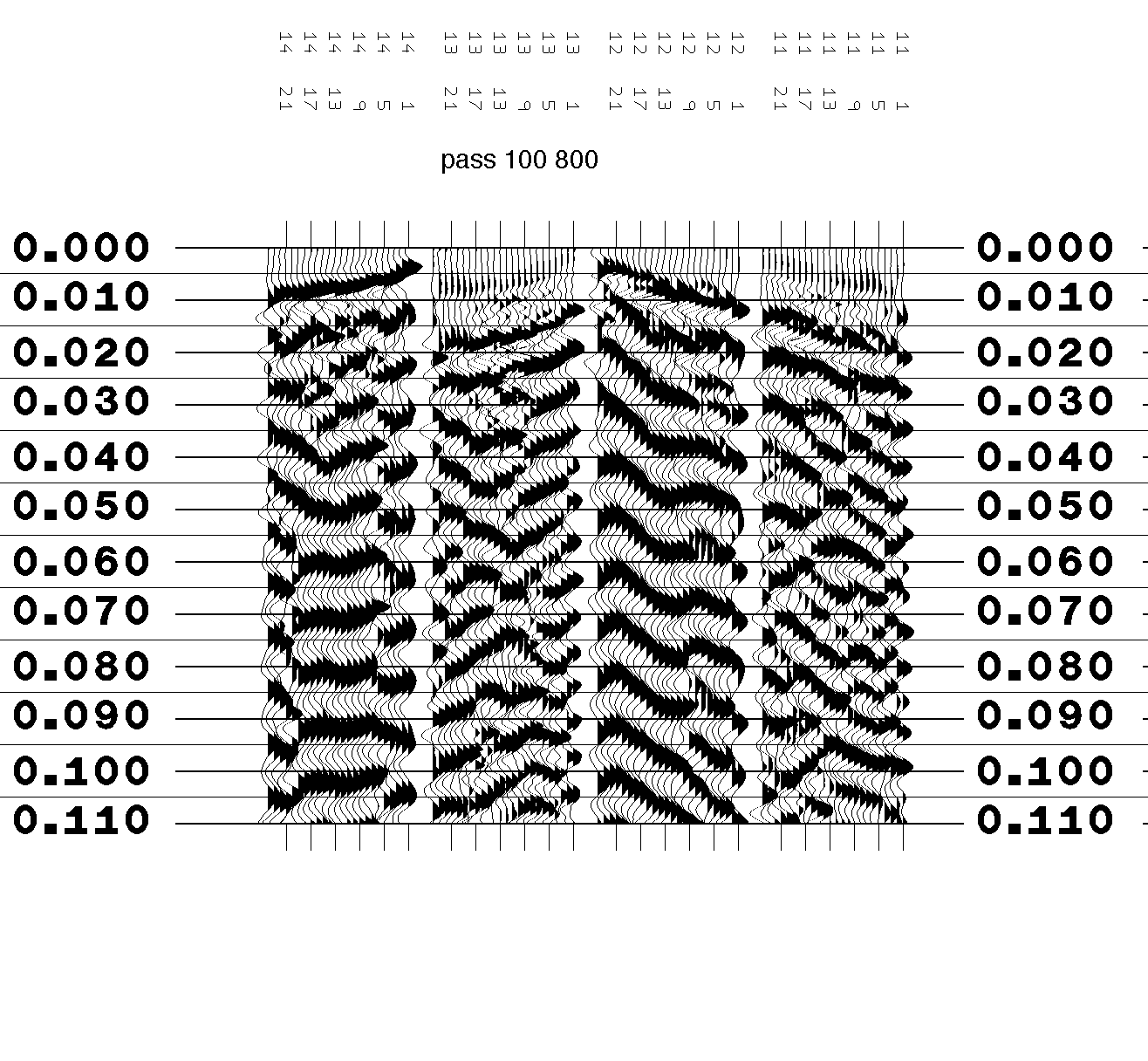

gila200x800.png - filter (200x800) agc (.02)
gila-syn-1.png - synthetic with v = 60 and linear events at t0=.01, .03 and hyperbolic events at t0=.02, .05, .07

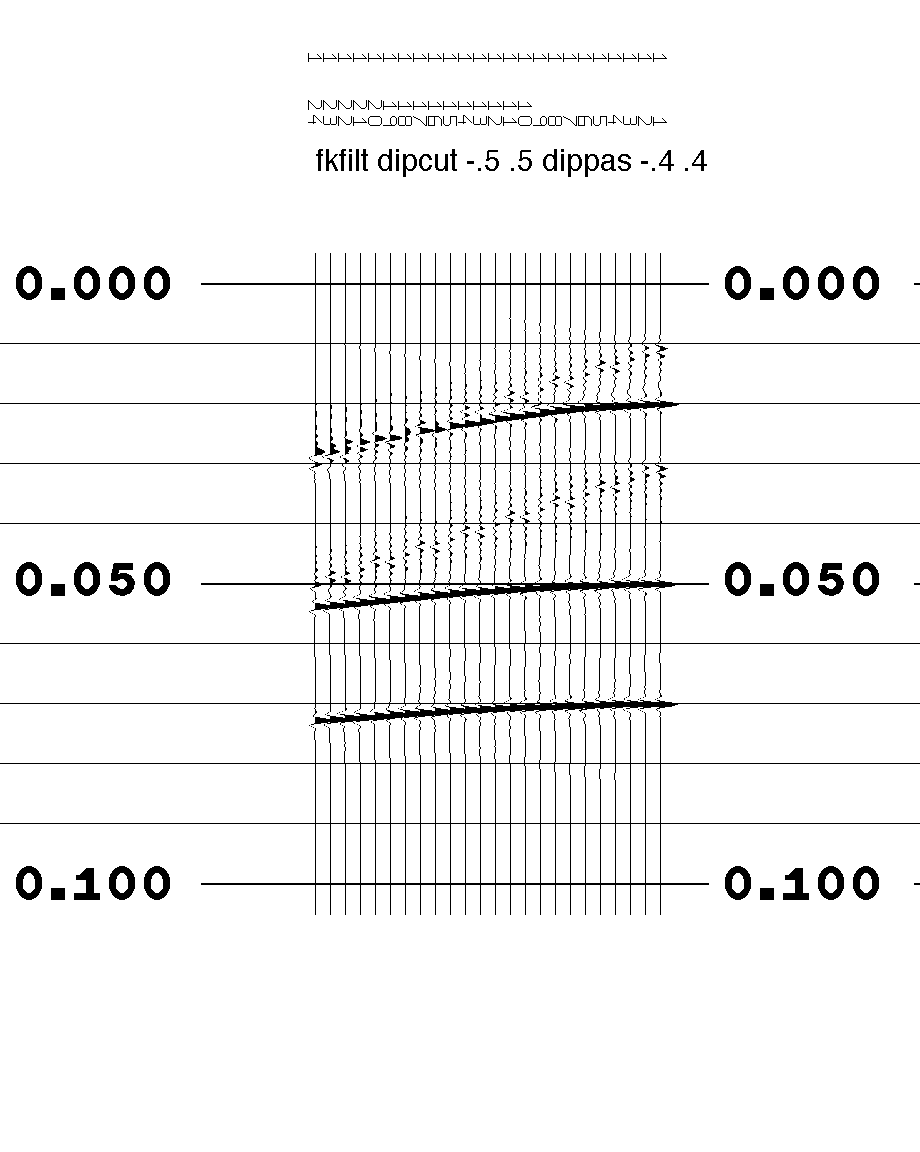

gila-syn-2.png - synthetic with fkfilt dipcut -.5 .5 dippas -.4 .4
If v = 60m/s, then direct wave is 1/60 or .0166s/m
With .05m per trace, then the dip is .000833m/s or .8 mils
gila-syn-3.png - synthetic with fkfilt dipcut -1 1 dippas -.5 .5
gila-syn-3.png - synthetic with fkfilt dipcut -2 2 dippas -1 1

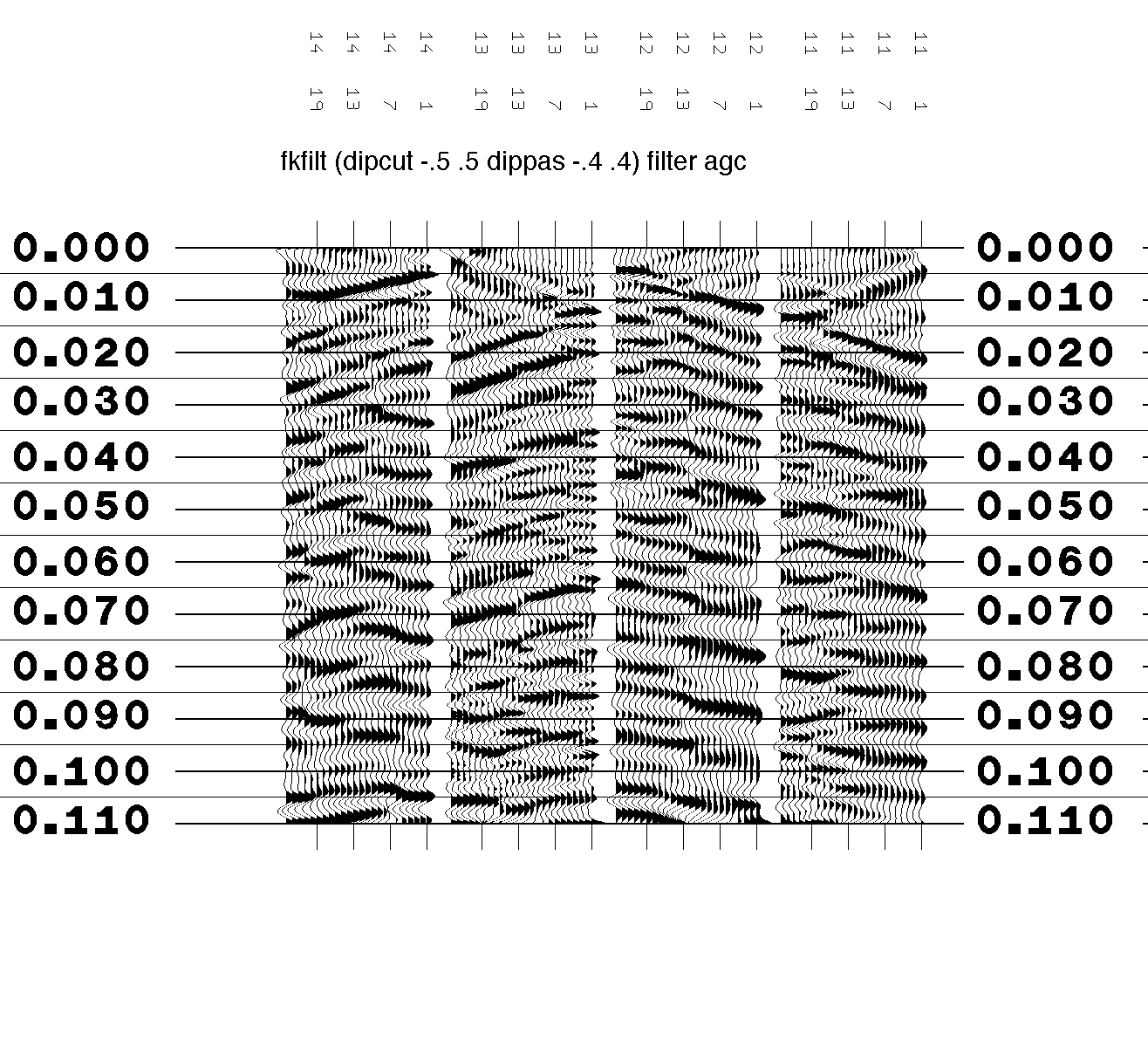

shots11-14fkfilt-0.png - fkfilt (dipcut -.5 .5 dippas -.4 .4) filter agc

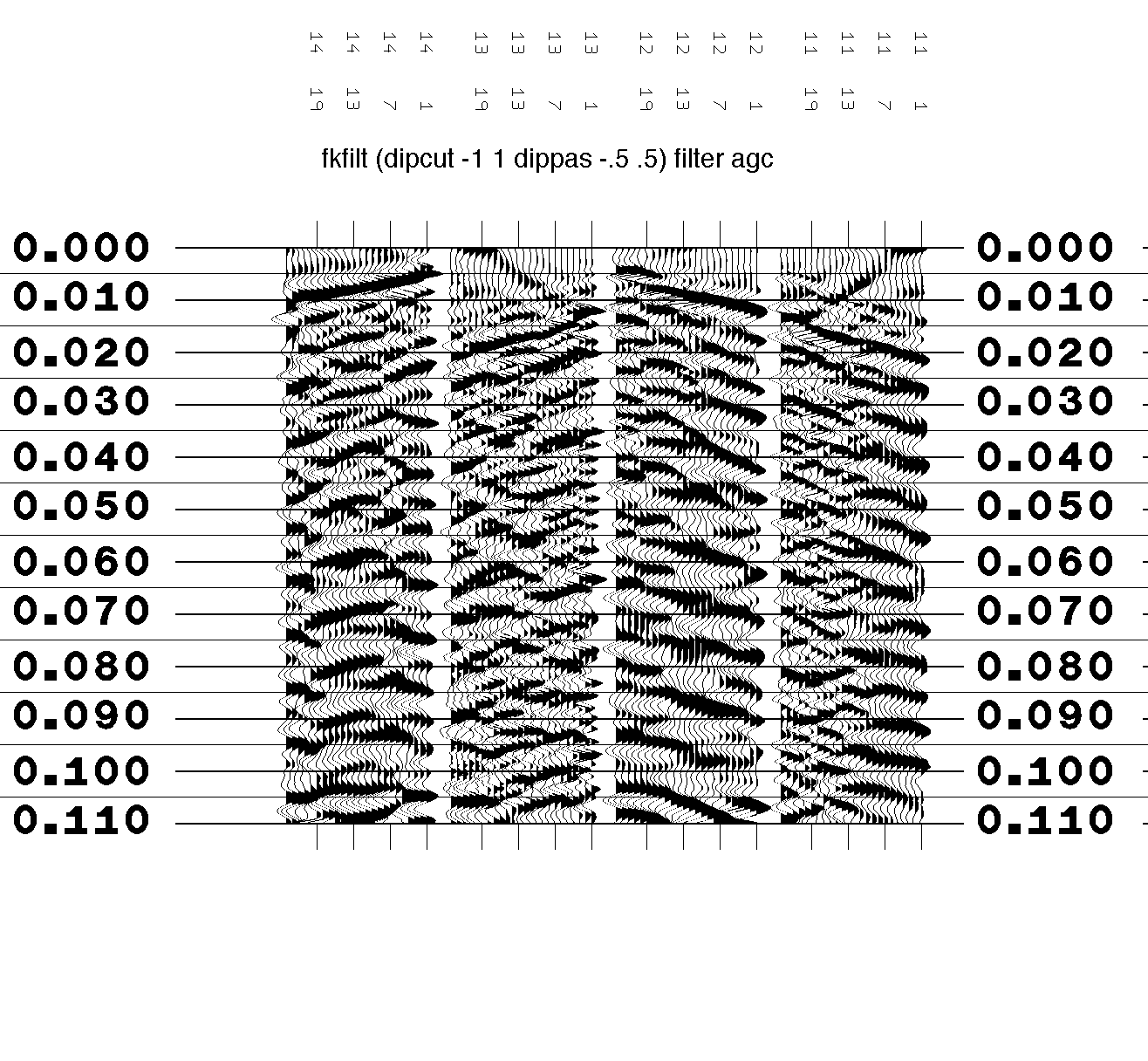

shots11-14fkfilt-1.png - fkfilt (dipcut -1 1 dippas -.5 .5) filter agc

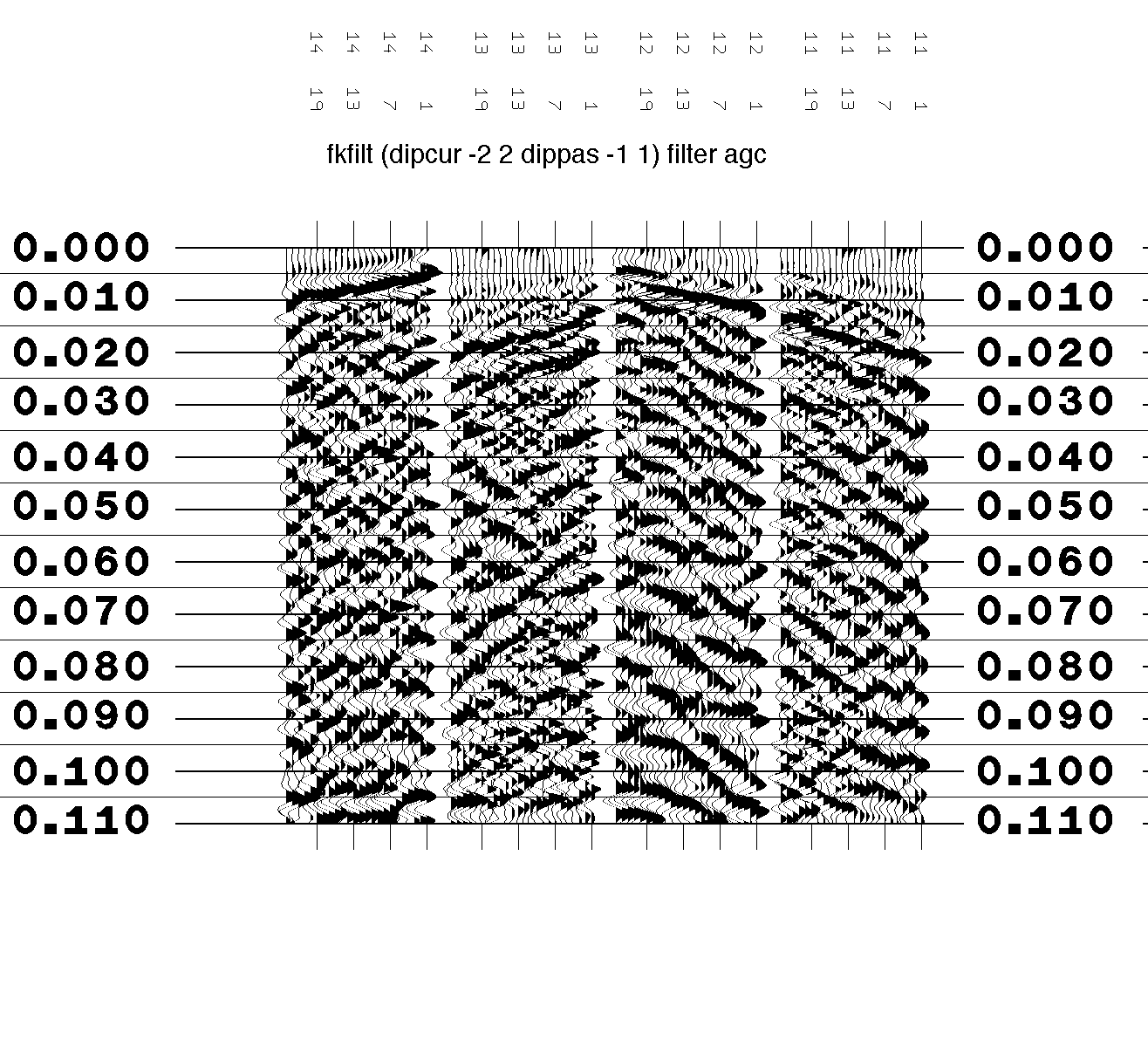

shots11-14fkfilt-2.png - fkfilt (dipcut -2 2 dippas -1 1) filter agc

GilaGeophyLogbook.pdf - scanned logbook.

Geometry:  5cm group spacing.  Shot is 5cm from closest phone.  Shot is 5cm
           off of the line.  Shots alternate between 1.25m hammer and a
           .2m solinoidand alternate ends of the phones.

NMO: Shot in loose sand.
If v=60, T0=.05s, x=1.25, then Tx = .0541664 (dt or nmo = .0041664)
If v=60, T0=.02s, x=1.25, then Tx = .028 (dt or nmo = .0088)
nmo-cvel60.png - fkfilt nmo (constant velocity of 60m/s) filter agc

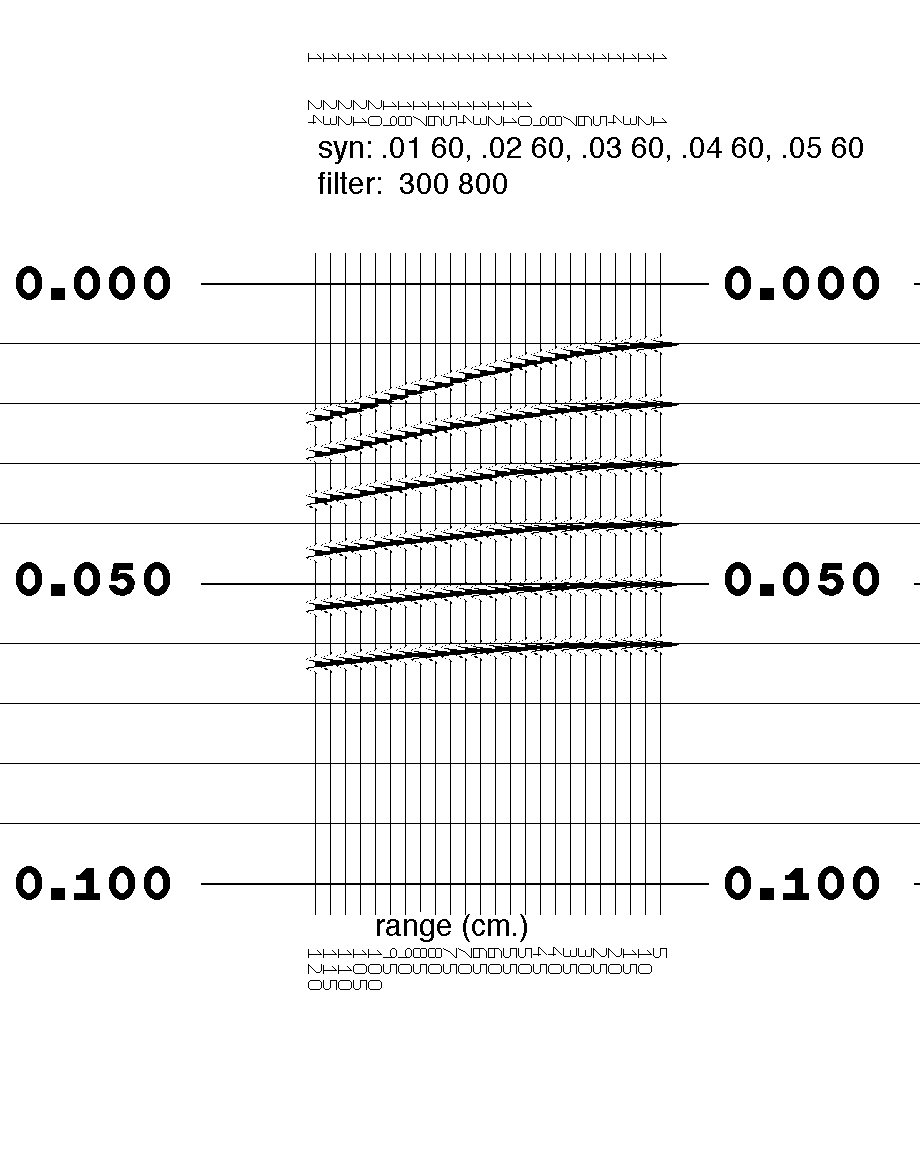

gila-str-1.png - syn filter

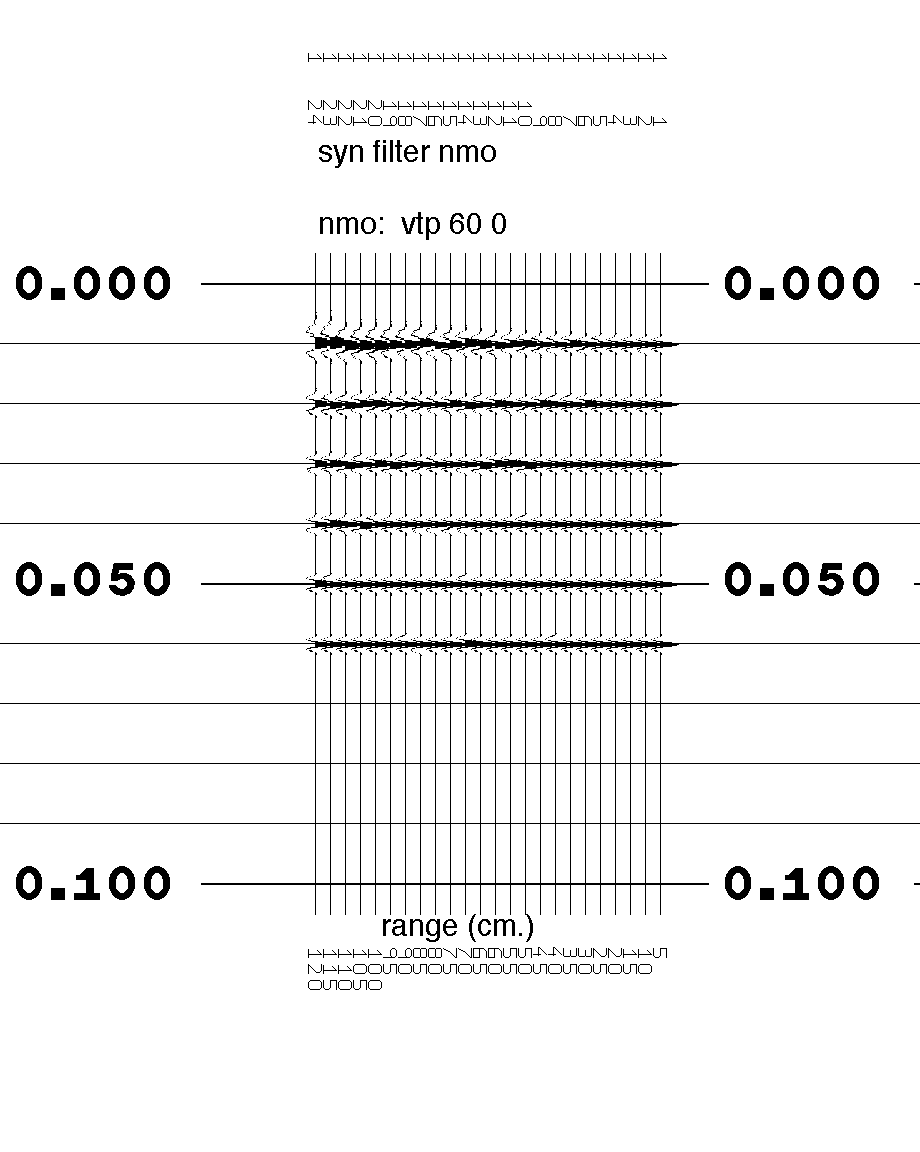

gila-str-2.png - syn filter nmo

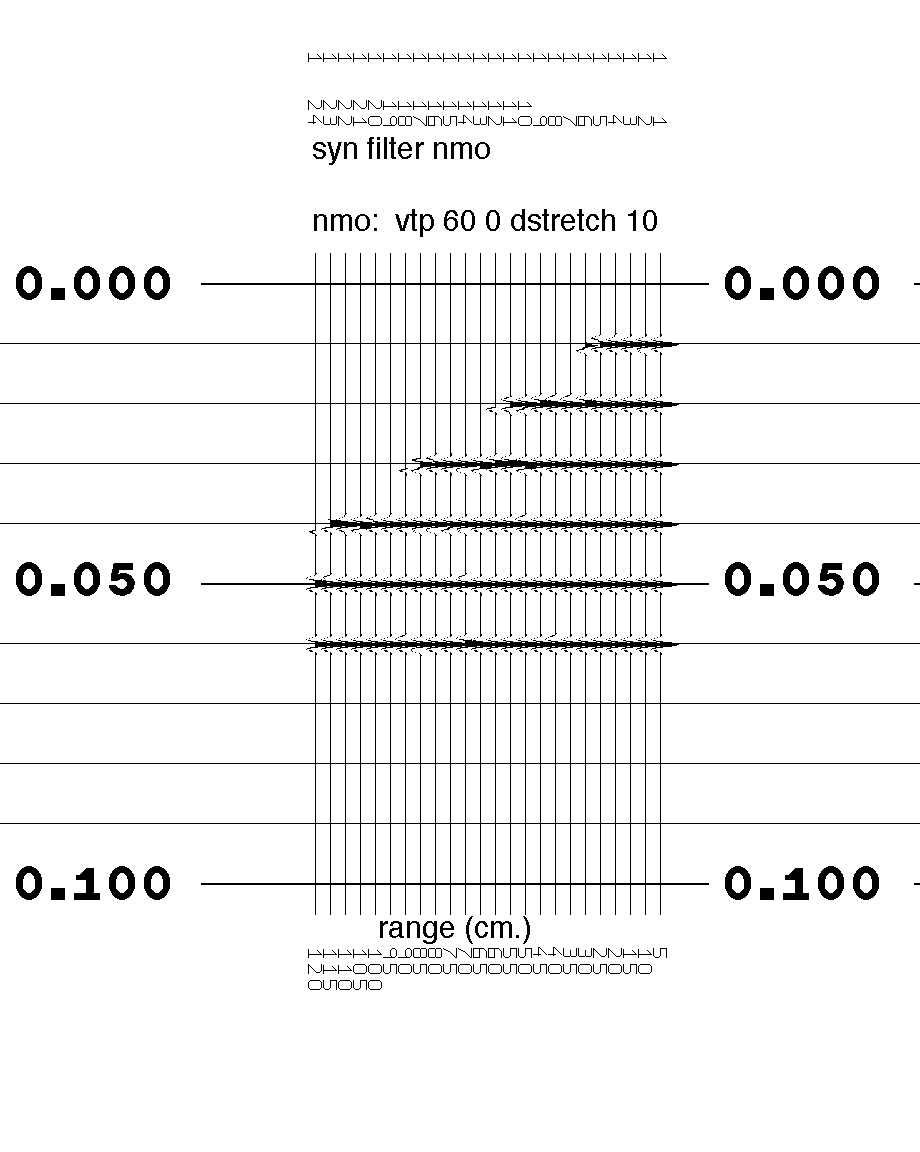

gila-str-3.png - syn filter nmo with dstretch 10

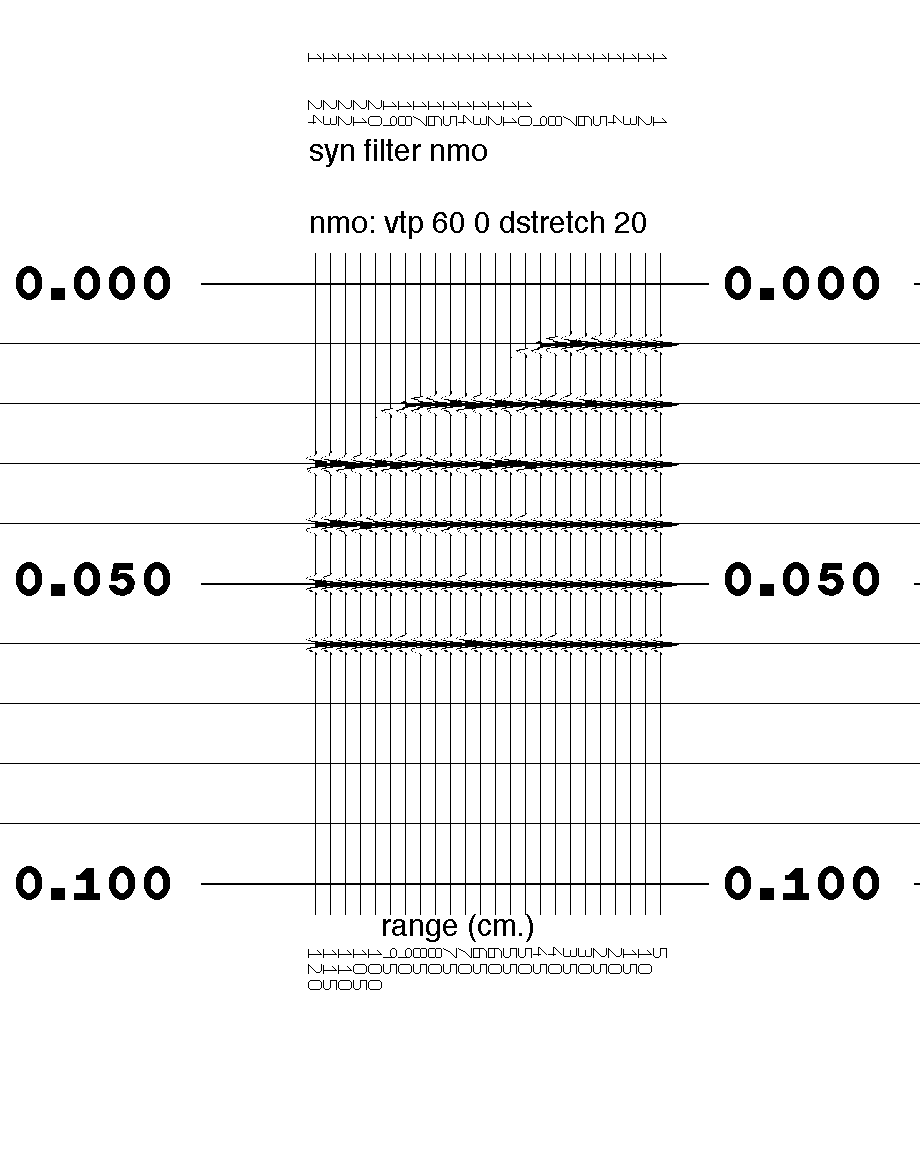

gila-str-4.png - syn filter nmo with dstretch 20

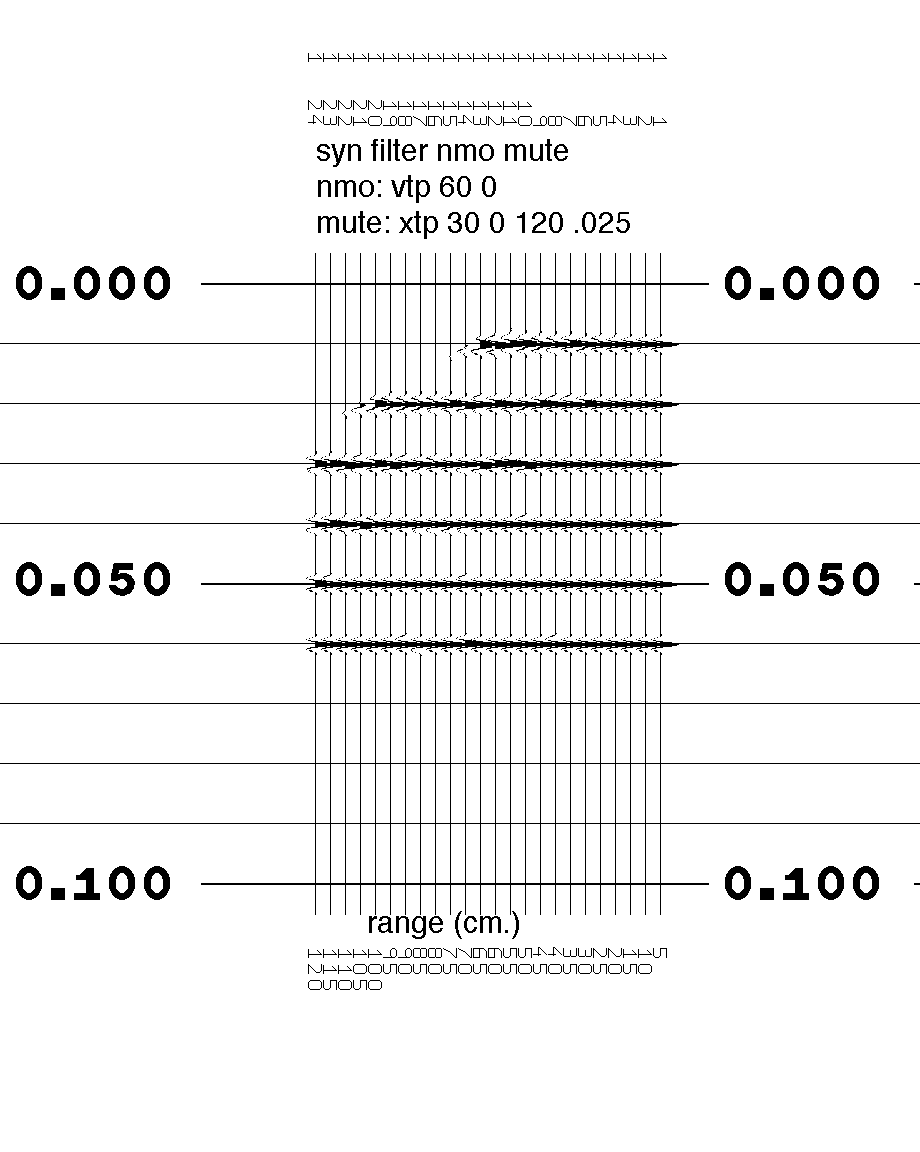

gila-str-5.png - syn filter nmo mute

gila-gat-1.png - gathers without gain

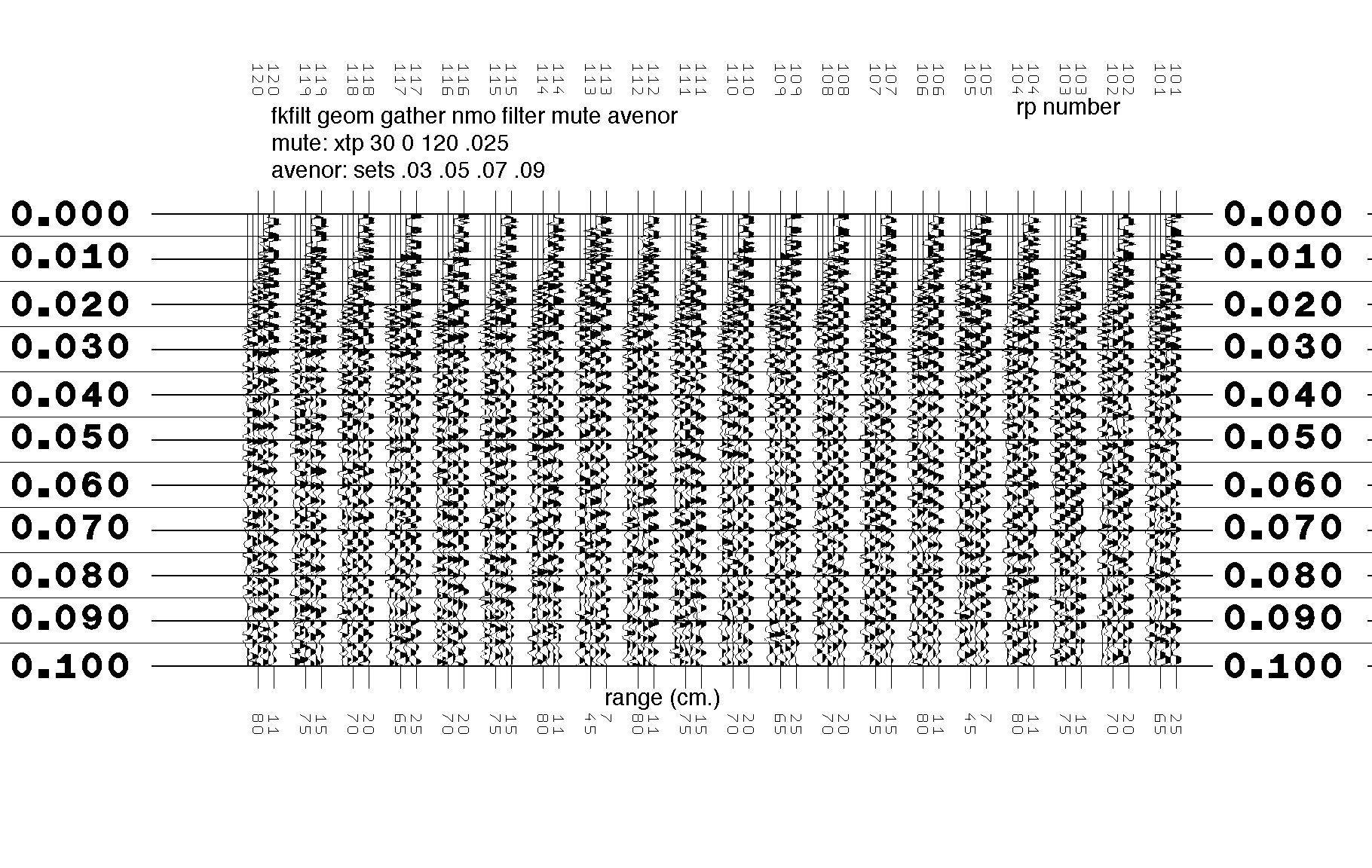

gila-gat-2.png - gathers with avenor gain

gila-cvstks.pdf - Constant velocity stacks

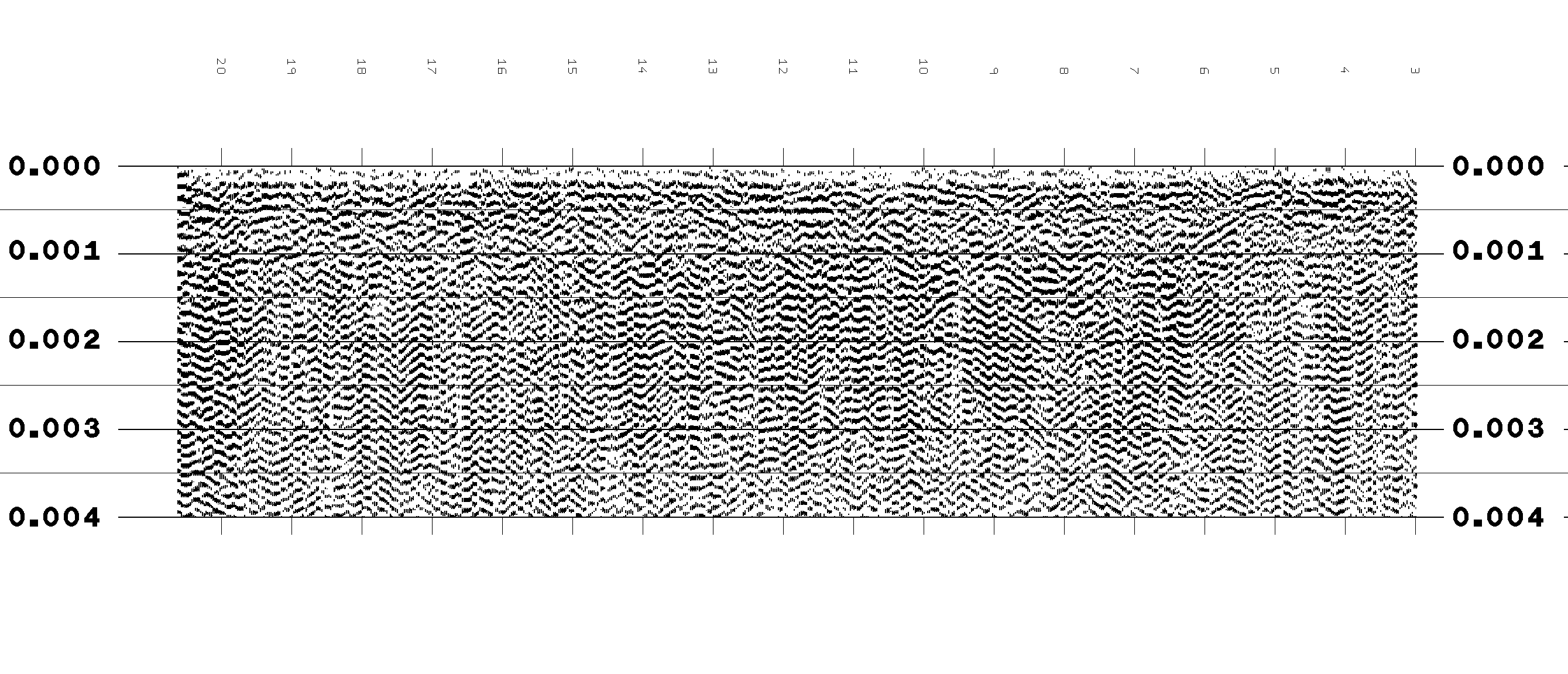

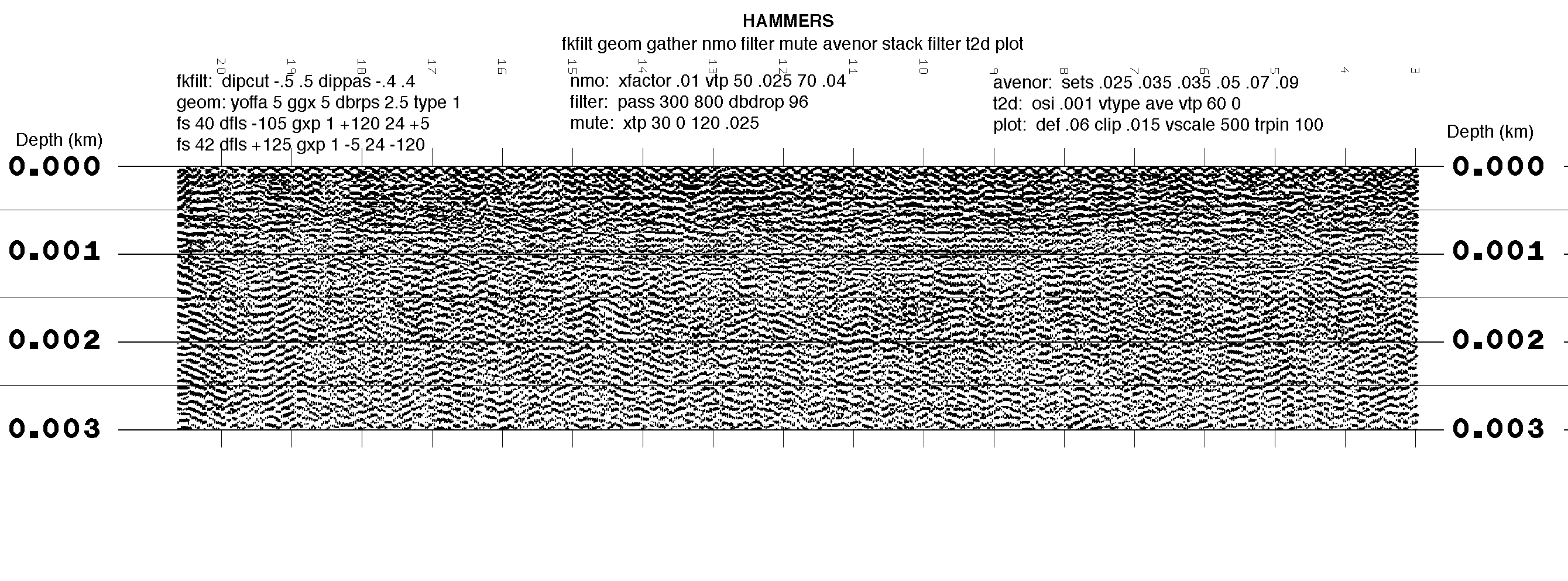

Stack #1: Hammers only in depth - fkfilt geom gather (evens) nmo filter mute avenor stack t2d plot

         Solinoid
shots201-211fkfilt-1.png - fkfilt filter
shots201-211fkfilt-2.png - fkfilt filter agc
shots201-211fkfilt-3.png - fkfilt filter avenor

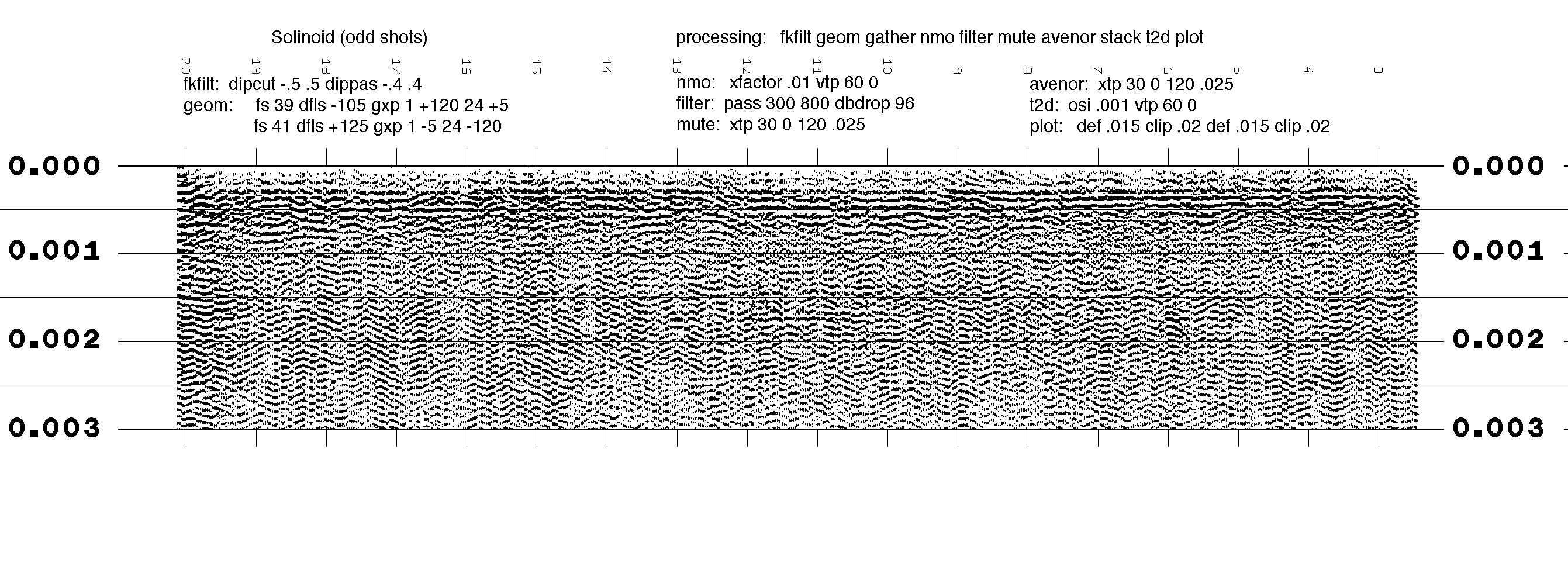

Stack #2: Solinoid only in depth - fkfilt geom gather (odds) nmo filter mute avenor stack t2d plot
(this and all other png plots look best after downloading and using ImageMagick's display)
